10 Slicing Introduction
Build Plate Adhesion Type
Set the type of the first layer of model printing to adapt to different printing requirements.
|
skirt To ensure the extrusion is good and fluent |
brim Contact with the bottom of the model, better adhesion at the bottom |
raft Add a thick base plate at the bottom of the model |
Layer height
Set the thickness of each layer of the printing model to get different surface effects and printing speed
|

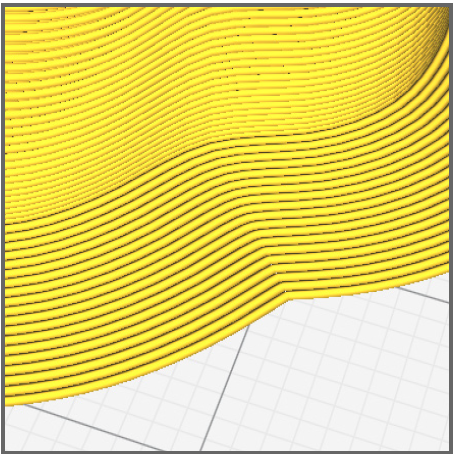

0.02mm This parameter will make the surface of the printed piece layer lines invisible |
0.1mm Printing time and surface accuracy more balanced options |

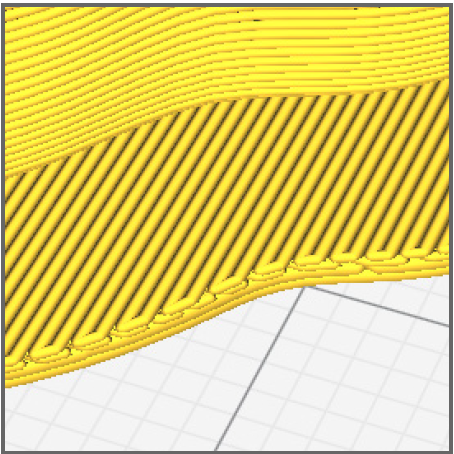

0.2mm Printing time is faster, but surface accuracy is reduced at the same time |
Infill density
Set the filling rate inside the model to meet different strength and weight requirements
|
8% Quickly get a model |
20% Relatively solid model |
50% The printing time will be greatly increased, and the model will be more solid |
Printing speed
Change the printing speed to meet your demand for printing time and precision
|
High quailty printing 25mm/s |
Common printing 40mm/s |
Fast printing 60mm/s |
Support
Set different supports according to the degree of suspension of different models and the appearance requirements of prints
|
none 25mm/s |
Touch building plate 40mm/s |
everywhere 60mm/s |
