Printer Setting

Step 1 :

Thread the filament through the break detector.



Step 2 :

Pull the trigger under the extruder, insert the fliament from the bottom until they reach the hotend.



Step 3 :

Click the nozzle sign to preheat the nozzle to 200℃.



Step 4 :

Click the adjustment button at the bottom of the interface, wait until the temperature reaches 200℃, and then click load material.



Step 5 :

Click until the nozzle extrudes well.



Changing Filament

Step 1 :

Click the nozzle sign to preheat the nozzle to 200℃.



Step 2 :

Click retrack fIlament until filament out of the hotend.



Step 3 :

Pull the trigger under the extruder, pull the rest filament out of guide tube.



Model Choosing

Step 1 :

Insert the flash-drive and open the model selection interface (Do not pull out the flash-drive during printing.



Step 2 :

Select the model you want to print, and start printing (Remember to adjust hotend up and down to make sure first layer stick well).



Step 3 :

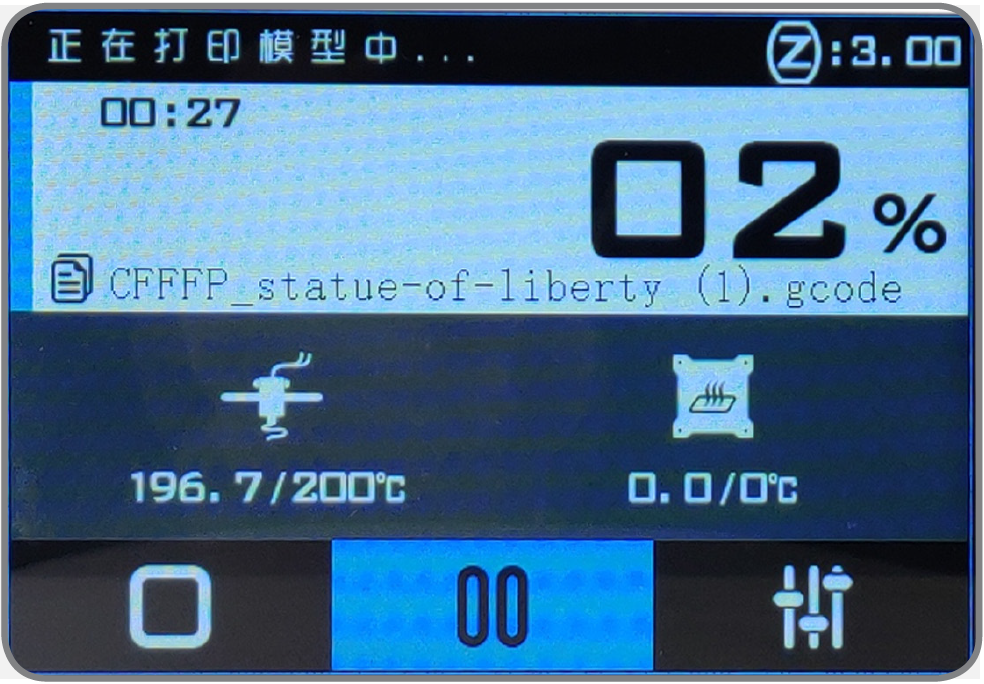

The screen shows the time and progress of printing.



Take out Model

Take out print surface and bend it to make the model fall off.



Support removal

If the print model is supported, use tools to carefully remove the support.
